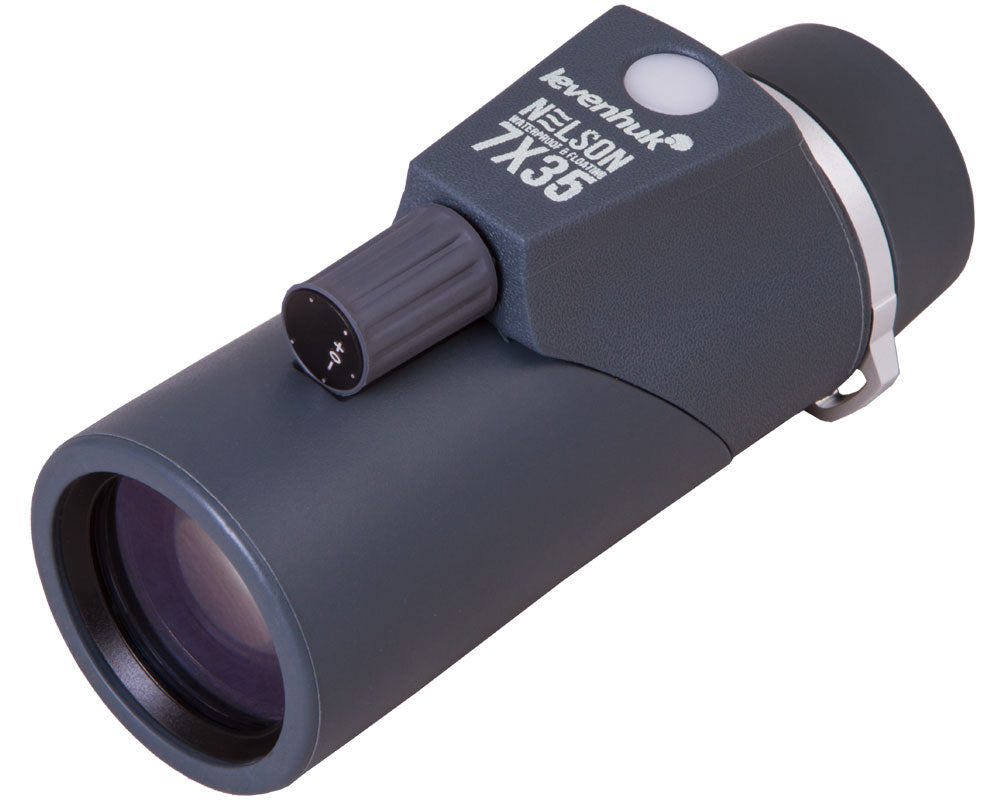

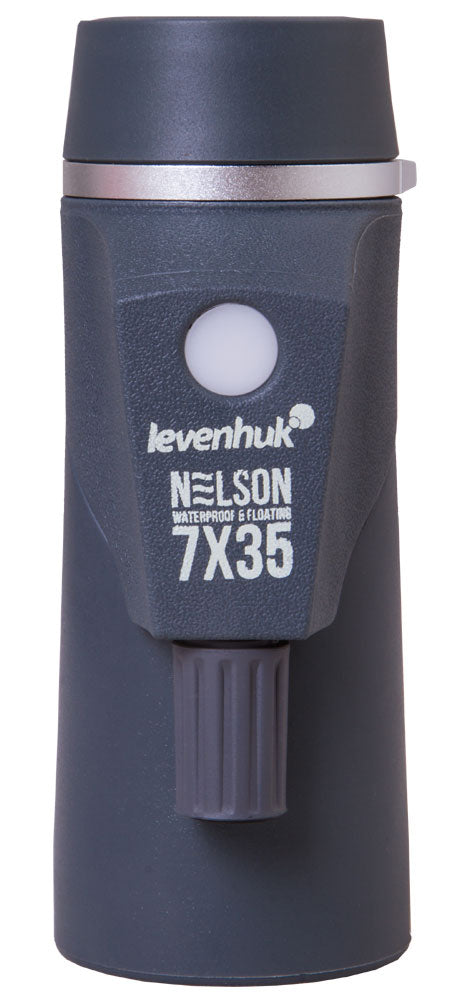

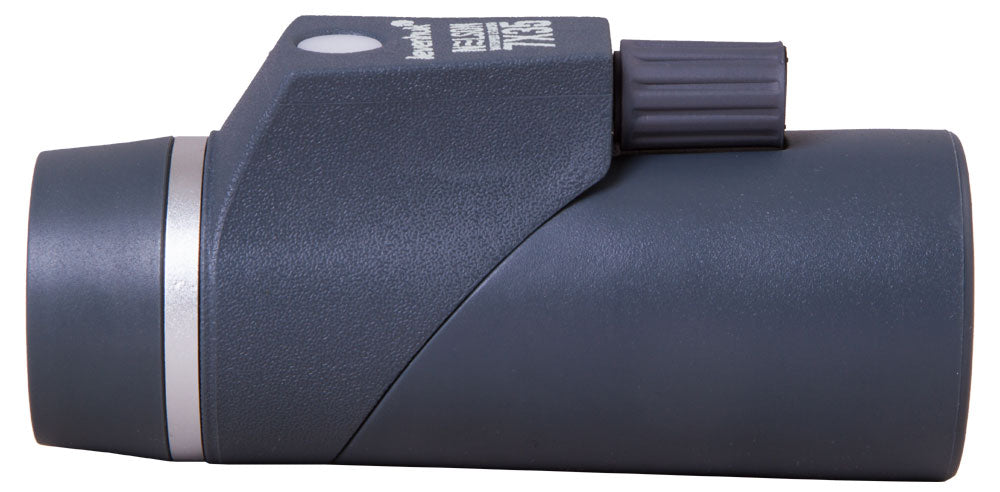

Levenhuk Nelson 7x35 Monocular with Reticle and Compass
Marine monocular. Magnification: 7x. Objective lens diameter: 35mm
7 - The magnification ratio indicates the degree of proximity of an object.
35 - The lens diameter refers to the size of the front lens of the device in millimeters. The larger the aperture is, the less sensitive the device will be to external light.
BaK-4 - What monocular lenses and prisms are made of and what affects the image quality
Levenhuk Nelson 7x35 Marine Monocular is a great companion for fishermen and water trip fans. This lightweight and compact device will easily fit anywhere, even in a pocket. As a small-sized optical tool, it still provides a wide field of view of 130m at a 1000m distance with 7x magnification, which is sufficient for the detailed observation of remote objects. The minimum close focus of 3m is great for viewing a coastline.

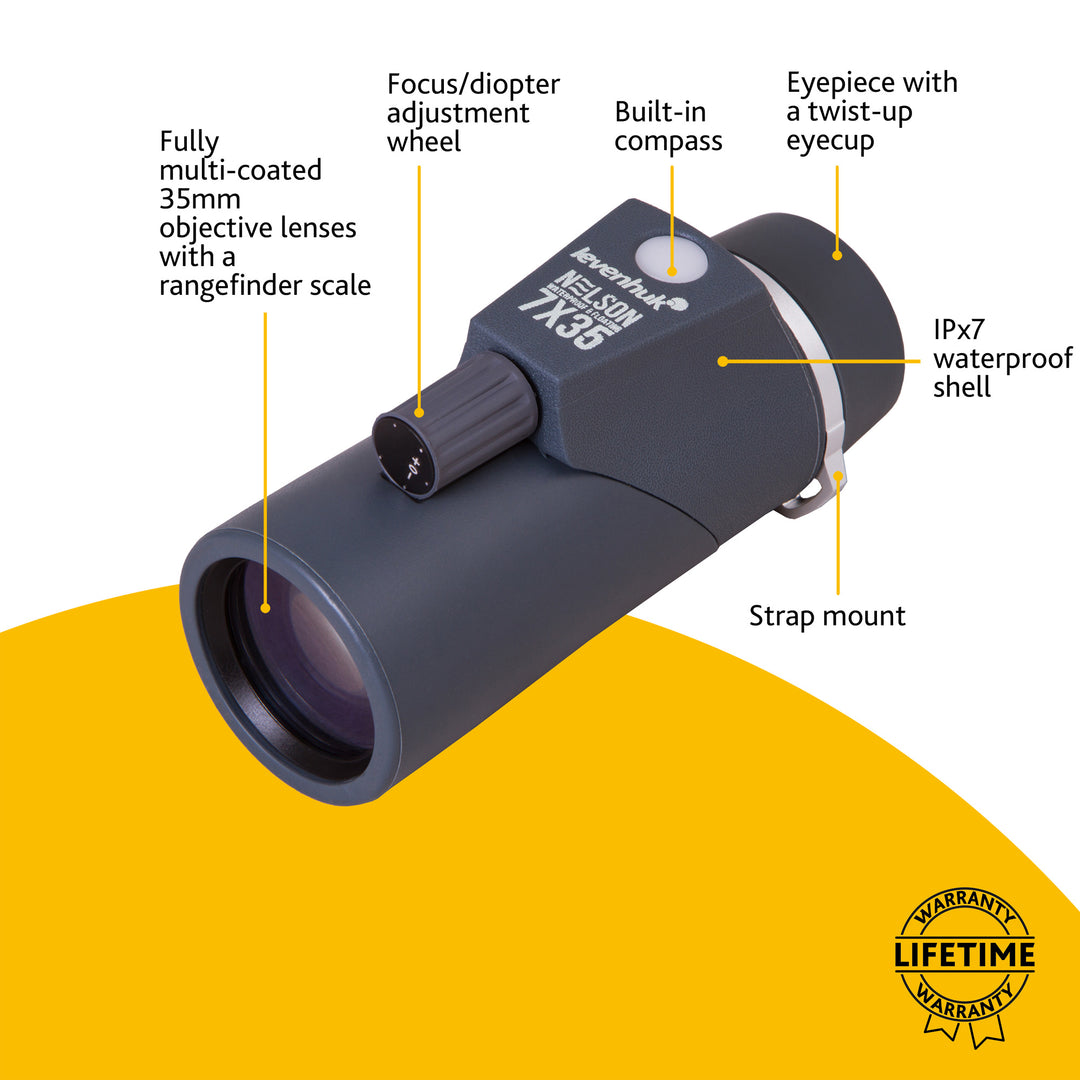

This marine monocular has a compass and rangefinder. We recommend using the compass during the daytime as it has no illumination. The scales of the instruments are visible through the eyepiece of the monocular. To use the rangefinder, you need to know the size (height) of an object to calculate how far away it is located. The distance is calculated with a special formula based on the rangefinder readings or, vice versa, you can calculate the size of an object if you know the distance to it.
The arc scale in the compass is graduated in degrees. The division value is 1°. The compass shows the direction toward the object. North is 360°, South is 180°, East is 90°, and West is 270°.
All optical elements are made of quality BaK-4 glass. The lenses are fully multi-coated and so the image will remain bright and clear even in low light conditions.

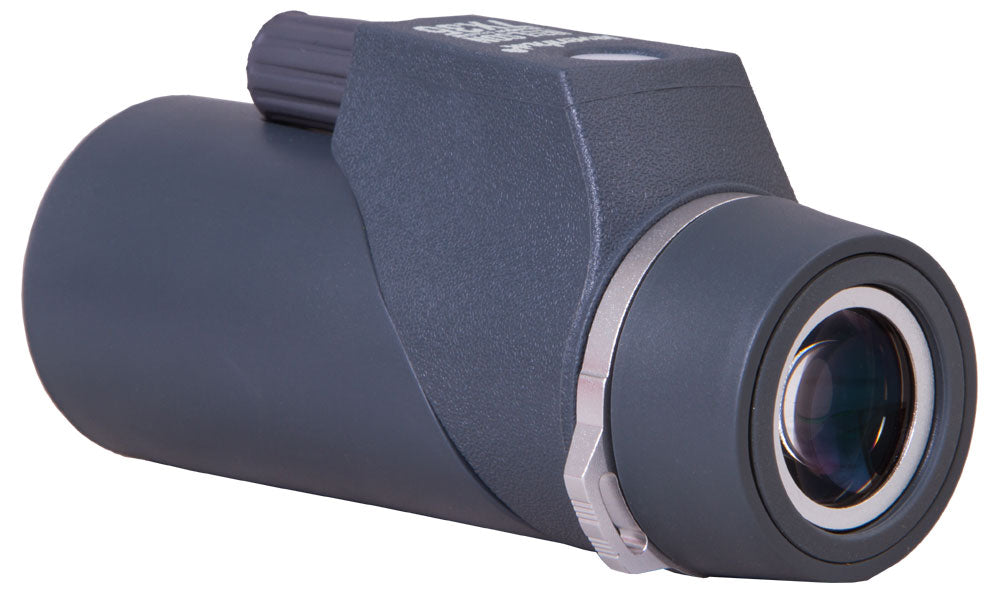

You can customize the diopter adjustment by rotating the eyepiece. The water-resistant body of the monocular is made of durable plastic. The nitrogen filling prevents the inner surface of the lenses from fogging.
We recommend using this monocular with the Levenhuk FS10 Floating Strap near water: the bright accessory will prevent the optical tool from sinking or getting lost.
Features
- Compact marine monocular with a built-in compass and a rangefinder
- Built-in compass and rangefinder

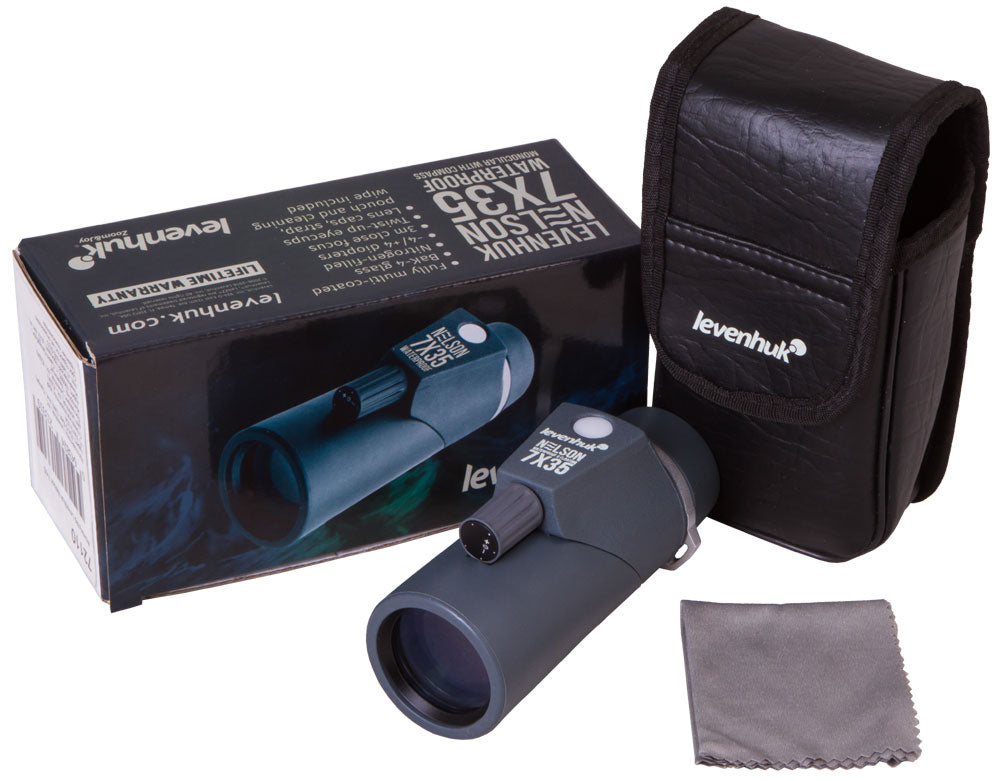

The kit includes
- Monocular
- Eyepiece protective cap
- Objective lens cap
- Cleaning wipe
- Strap

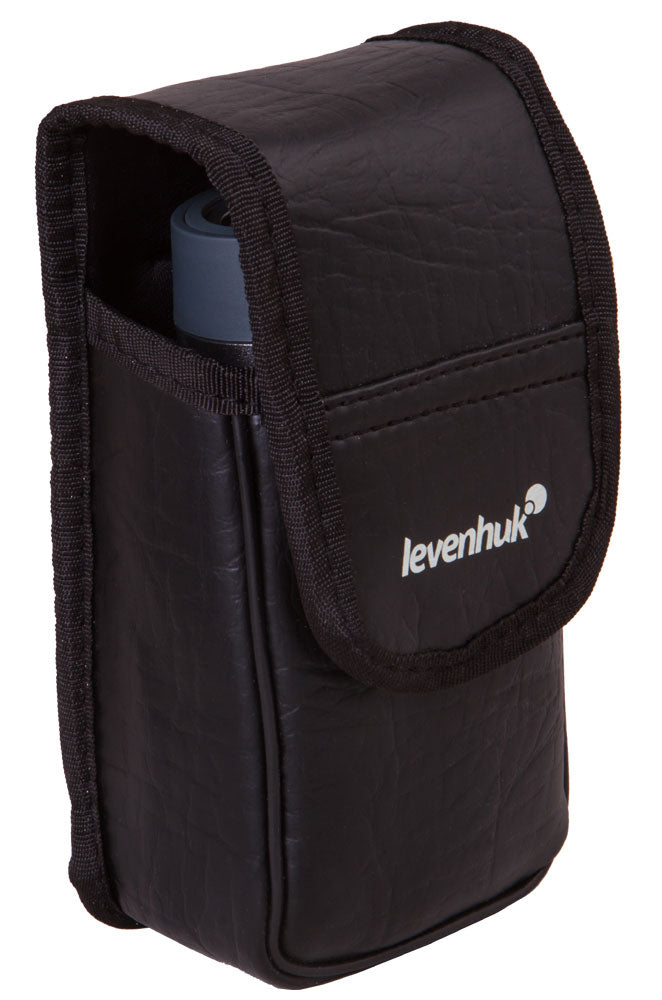

- Pouch
- User guide and lifetime warranty
Specification
| Levenhuk Nelson 7x35 Monocular with Reticle and Compass | Levenhuk Nelson 8x42 Monocular with Reticle and Compass | |
| Product ID | 72110 | 72111 |
| Warranty | lifetime | lifetime |
| EAN | 5905555001722 | 5905555001739 |
| Package size (LxWxH) | 18x9x7 cm | 18x9x7 cm |
| Shipping Weight | 0.415 kg | 0.445 kg |
| Magnification, x | 7 | 8 |
| Objective lens diameter (aperture), mm | 35 | 42 |
| Eyepiece | 2 optical elements in 1 group | 2 optical elements in 1 group |
| Optics material | BaK-4 | BaK-4 |
| Lens coating | fully multi-coated | fully multi-coated |
| Exit pupil diameter, mm | 5 | 5.25 |
| Eye relief, mm | 23 | 23 |
| Twilight factor | 15.65 | 18.33 |
| Relative brightness | 25 | 27.56 |
| Field of view, ° | 7.5 | 7 |
| Field of view, m/1000m | 130 | 120 |
| Close focus, m | 3 | 3 |
| Eyepiece diopter adjustment, diopters | ±4 | ±4 |
| Eyecup | twist-up | twist-up |
| Body | plastic | plastic |
| Body filling | nitrogen | nitrogen |
| Waterproof | ✓ | ✓ |
| Moisture resistance | ✓ | ✓ |
| Degree of moisture/water protection | IPx7 waterproof (protection against immersion at less than 1m depth) | IPx7 waterproof (protection against immersion at less than 1m depth) |
| Hermetically sealed design | ✓ | ✓ |
| Operating temperature range, °C | -20...+55 | -20...+55 |
| With compass | ✓ | ✓ |
| Built-in rangefinder | ✓ | ✓ |
| Pouch/case/bag in set | pouch | pouch |
